Description

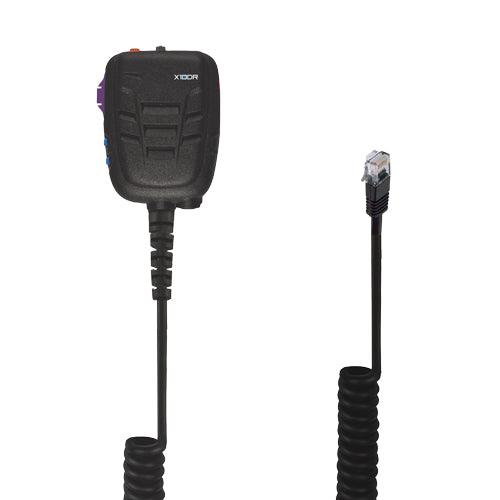

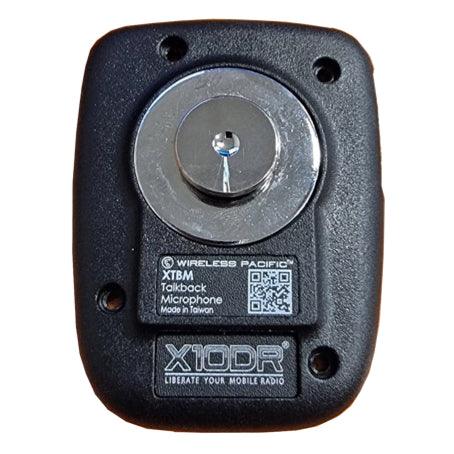

Turns your X10DR gateway into a vehicle despatch console! The XTBM Talkback microphone has been designed specifically to allow a user remaining in the vehicle to maintain full communications with X10DR handset users out of the vehicle while also providing the ability to instantly communicate with others over the host radio network from the one device.
The side PTT button on the talkback handset as default is designated as the radio PTT, but if preferred, it can be pre-assigned as the Talkaround PTT button. When configured as such the top grey Control button is then assigned as the radio PTT button.
Alternatively, where priorities change constantly, the top grey Control button can act as an assignment toggle switch. Press it once and the side PTT button becomes the Talkaround Transmit button and the status LED changes to green to let the user know they are communicating locally on the ground. Press it again and the side PTT button becomes the radio PTT button with the LED changes to blue to let the user know they are now talking out over the sky to the radio network.
In either position, all X10DR wireless and wired handsets hear both sides of every conversation. The true all informed, group communication network where everyone remains connected.

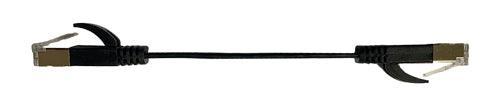

The kit includes an XDIA dual interface adaptor and an XIC-0.15 15cm interface cable to allow the Talkback Mic to be plugged in series with the XIC coming from the XCA adaptor connected to the radio.
