Description
To provide even greater versatility including control room and other in-building coverage applications, Wireless Pacific has developed the XIVG very compact Plus Series Gateways. These gateways are supplied with a standard handset XSMA2 ground independent directly attached for maximum coverage in-building deployment (example: on ceiling installation) or for mobile applications where installing an external antenna and maximum range is not paramount.
When used with multiple Elite Plus handsets the XRTG-EX2 Elite Plus model acts as a Repeater doubling the effective range between 2 handsets. If desired, it can be used as a completely standalone repeater (i.e. with no host radio connection) to allow two/three Elite Plus handsets to communicate fully secure (AES128 bit encryption) within a nominal 500 meter line of site radius of the XIVG-EX2 gateway.
The XIVG Plus compact housing mounts is very small and lightweight and can attach by double sided tape or with two screws to any available flat surface. XIVG operation has been confirmed up to 60C (140F)and down to -30C (-22F) meaning it can operate in most environment extremes.
TOUCHLESS PAIRING PROCESS
Hold the handset nearby, pressing both its blue buttons until the blue LED flashes rapidly and the handset beeps (after 5 secs). Next, depending on the interface required, one of the following procedures is required to put the gateway into pairing mode:
a/ Control Console use:
Plug a powered USB-Micro cable into the gateway's USB port. A few seconds later pairing confirmation tones will sound and the LED on the handset and gateway will glow solid.
b/ Mobile radio use:

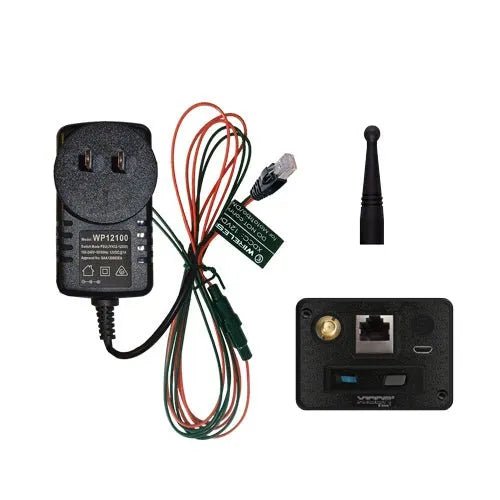

With the attached mobile radio powered OFF, apply DC power to the red fused wire coming from the XCA radio adaptor. A few seconds later pairing confirmation tones will sound and the LED on the handset and gateway will glow solid.
THE NORMAL XIVG PACKAGE INCLUDES:

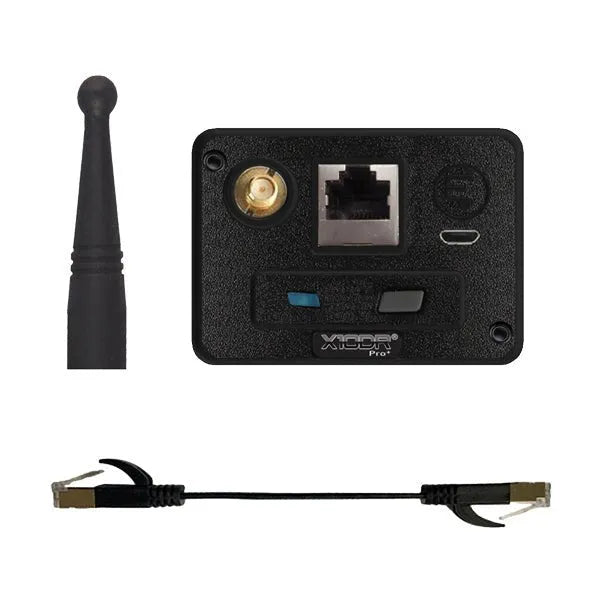

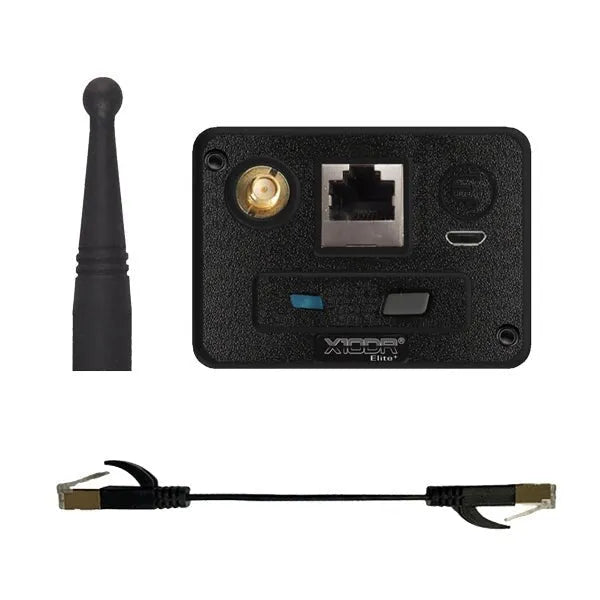

AES 128 Bit Encrypted, Internal mount gateway, XSMA2 antenna, XIC-0.15 Interface cable, user card and 12-month warranty.
INSTALLATION OPTIONS:

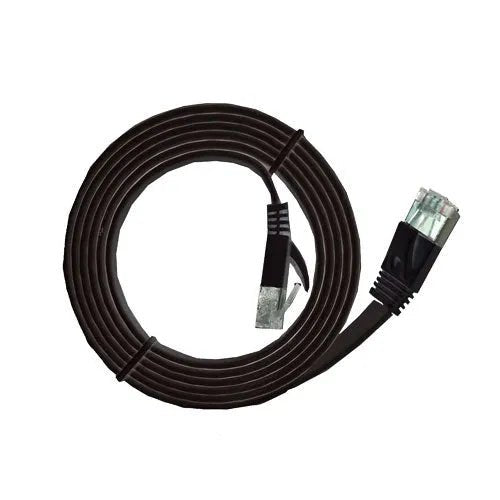

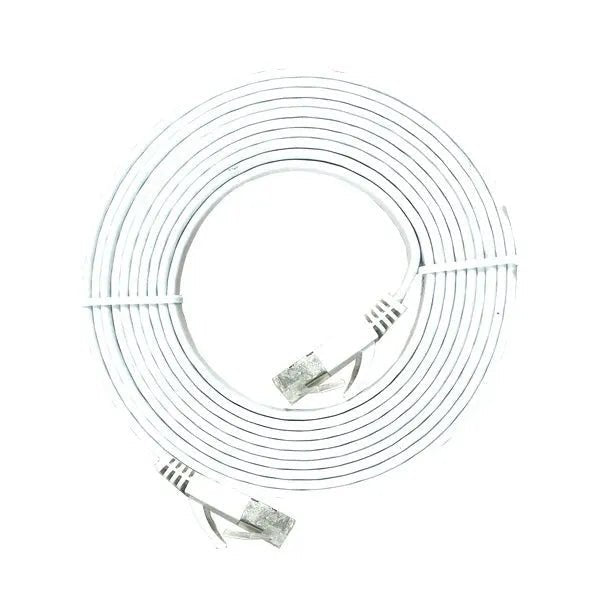

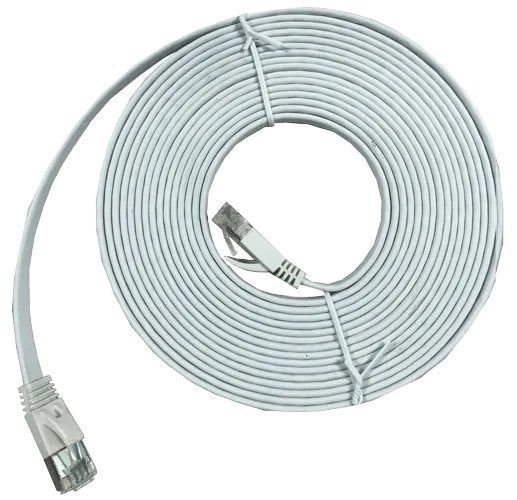

XIC-0.15 shielded 15cm flat interface cable is included. Other lengths can be order as desired. Order the XCA Radio specific adaptor to suit your mobile radio. Search Here
HANDSET ORDERING:

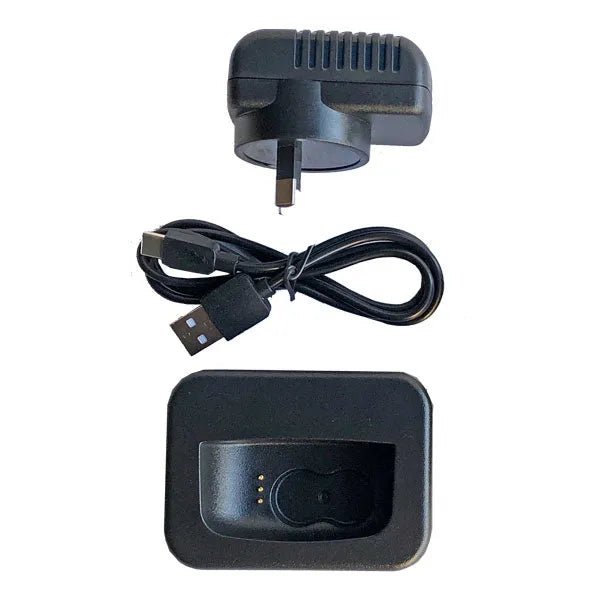

For XIVG-EX2 : Order one/two/three X10DRSM-EX2 Elite Plus handset with XMVC Mobile chargers & XDCC-RJ DC power cables or XDTC AC Desktop charger.
For XIVG-PU2 : Order one X10DRSM-PU2 Pro Plus handset with XMVC Mobile chargers & XDCC-RJ Dc power cables or XDTC AC Desktop charger.
View User Manual.
