X10DR® Elite Plus | X10DR-EX2

Wireless PacificSKU: x10dr-ex2

Sale price$1,298.00

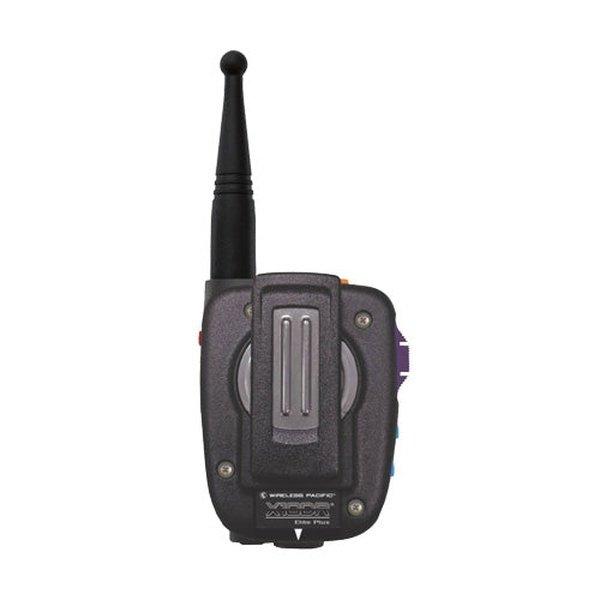

X10DR® ELITE PLUS Out Of Vehicle Communications Solution

X10DR Out of Vehicle Communications System

Created by Wireless Pacific, X10DR Digital Vehicular Repeaters offer a revolutionary approach! Precisely engineered to provide world-class, mission-critical, mobile radio access, X10DR satisfies users all over the world. Most importantly, X10DR guarantees and upholds the complete reliability of your group-based mobile two-way radio system. It provides that last connection to flawlessly bond your team while away from their vehicles. X10DR-EX2.

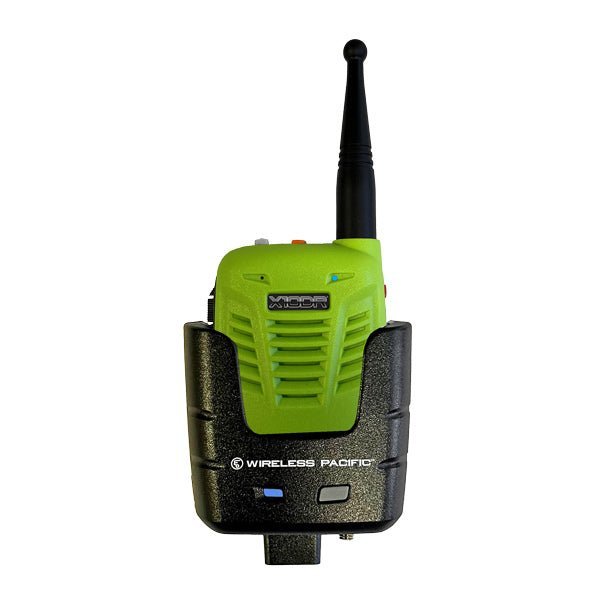

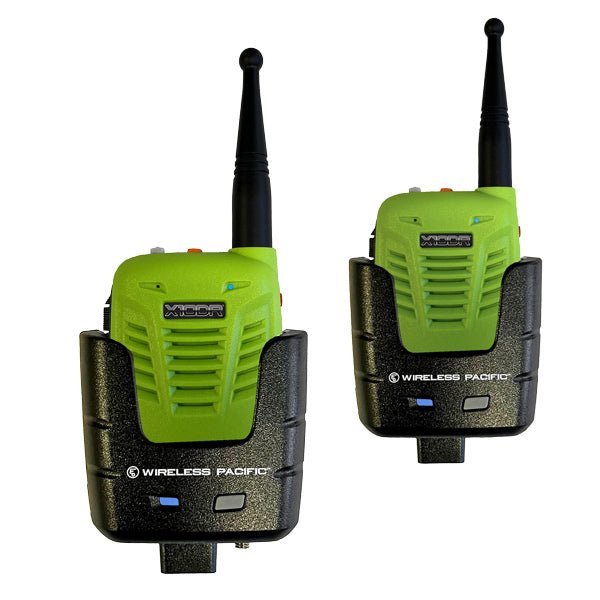

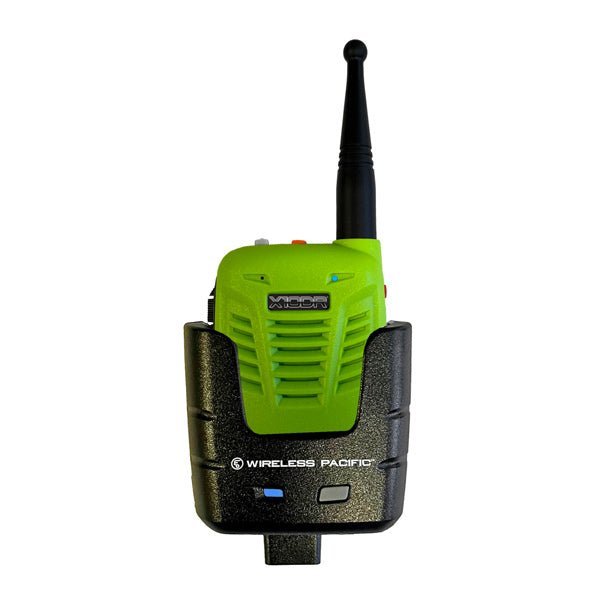

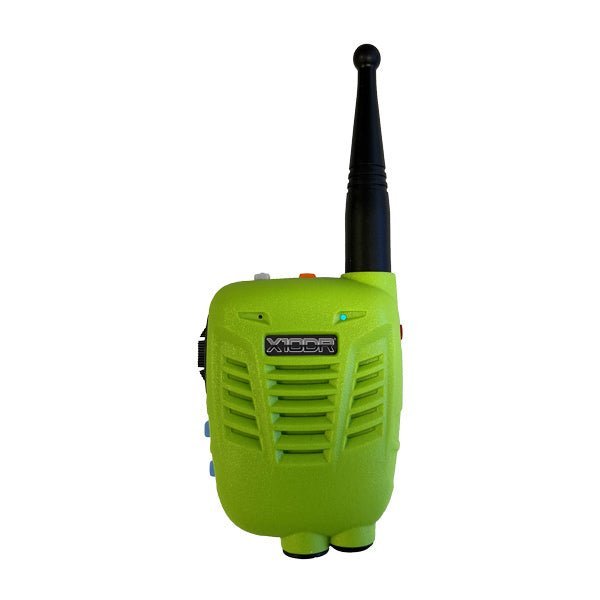

Safety Green Elite Plus

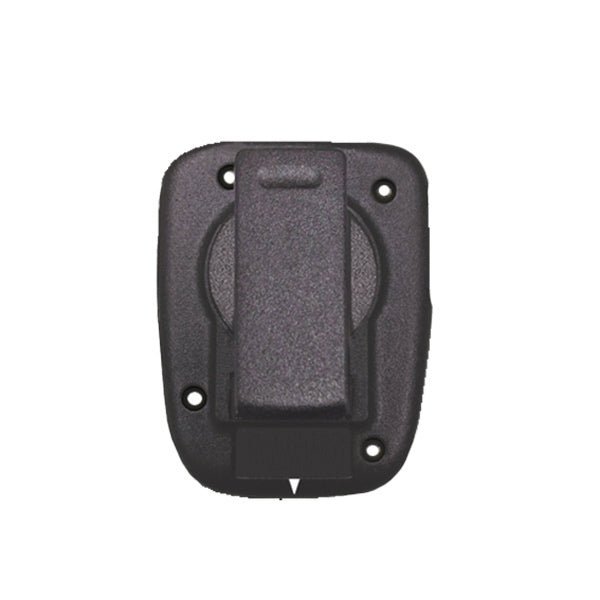

To further enhance user safety we now offer our Safety Green series that includes a non metal back clip making it perfect for Electrical utility use.

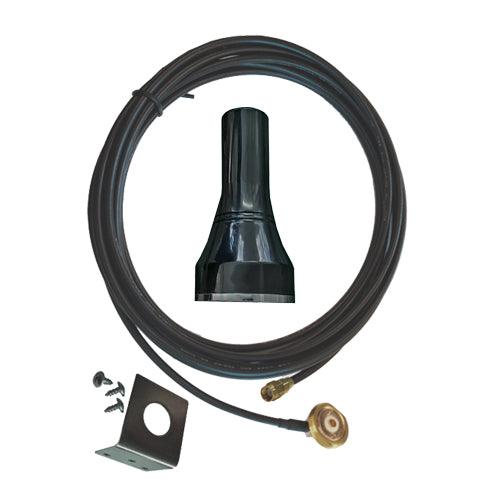

Antenna Choice XMPA NMO or XMAK N-Type

To meet the needs of unique vehicle mounting requirements we offer two type of Multipolarity antennas. The Default XMPA NMO type which allows both roof or rack mounting or the slimmer profile, XMAK rack only mount. Should you require the XMAK N-type, please add requirement as a note when ordering.

Elite Plus – Team worker solution

 Unlock unprecedented power from our Wireless Pacific X10DR Elite Plus with 500 meters of range and up to three handsets on one gateway. Stay connected in remote locations with Relay Mode, reaching up to 250 meters from your partner's or relay handset. Feel secure with AES 128 encryption, enabling a private local channel to keep your team's conversations license-free and out of earshot. Go even further with full-duplex mode, allowing for handsfree operation on-site. Get the freedom you need from Elite Plus.

We are Australia's Authorised X10DR Master Distributor.

Open Channel Group Communications

Open channel communications create invaluable morale and solidarity among peers - an invaluable organizational asset powered by a two-way radio system that allows for swift and effective coordination. Law enforcement requires two way to ensure everyone assigned to a given channel has immediate and up-to-date awareness of their environment. The X10DR Out of Vehicle Solution ensures your team can swiftly stay in sync, no matter if they're on the move or away from their vehicle. X10DR offers fast, consistent capability that allows all members to hear every conversation as soon as it’s spoken, keeping your officers informed and able to protect the public with ease.

Staying Secure In Remote Work Environments

X10DR is a revolutionary technology that keeps first responders in constant communication with each other over long distances, up to five hundred metres from their vehicle-mounted mobile radios. This eliminates any communication delays when officers need to return to their vehicle for updates and ensures quick response times, protecting lives and property.

Talk On or Off The Network - Now with local Full Duplex Handsfree

X10DR Elite Plus offers two or three users secure, local on-site channels of communication via their X10DR Elite handset. AES encryption ensures safety, and an instant Talkaround connection provides an exclusive voice channel for officers. Additionally, X10DR Elite Plus provides selectable, full-duplex, handsfree talkaround capability for easy local communication. Field staff can communicate freely without losing any spoken words, and respond with the press of a button.

X10DR Elite Plus helps keep your workers safe

In April 2012, Wireless Pacific revolutionized the mobile radio industry with the X10DR Secure Wireless Microphone. This Powerfully Simple™ technology provided a new, cost-effective method of solving an old problem. Today, tens of thousands of X10DRs are being used in countries across the world, showing that this idea is proven and reliable. We've further advanced the world's leading out-of-vehicle communication system, enhancing safety for field teams.

Emergency Duress Alarm

The X10DR secure wireless microphone naturally provides a duress button that can be used to activate the emergency mode within the host mobile radio. Field personnel can now call for assistance even while hundreds of metres from their vehicle. X10DR Elite models also allow localized alerting so your nearby partner instantly knows your predicament. Naturally, X10DR can be programmed to automatically broadcast “Live Mic” to allow remote monitoring of an emergency situation.

Mandown Monitor option

When fitted and activated, the Mandown function turns on automatically whenever you remove the handset from its charger. If there is no user movement or transmit activity for 2 minutes, quickening alert tones will sound for 30 seconds. If there is still no user activity, the radio’s emergency input will be triggered.

Earpiece/ Headset/ Covert Accessory Operation

Elite models feature a smart Hirose® audio port on the base of each secure microphone that allows the use of a wide variety of specialist covert and everyday headsets and audio accessories. When required, programming allows the handset’s battery to be shared with externally connected audio accessories requiring (3.3V) DC power. Alternatively, an earpiece provides a simple, easy, and effective way to maintain quiet secured private communications.

Command/Automatic Relay Mode

The X10DR Elite Plus now features the unique ability for a handset user to activate Relay mode whereby a partner’s handset that has lost direct connection with the vehicle gateway will then have their communications seamlessly relayed via their partner’s Relay activated handset. Designed for in-to-building range enhancement, it would be typically deployed when entering buildings whose physical construction prevents an X10DR handset from communicating back to their vehicle. The Relay handset user would remain in a location that remains connected to the vehicle while their partners enter deeper into the building to perform their duties Limit of two handsets per gateway when Relay Mode is desired.

Extra Loud Receive Audio

While some X10DR users may prefer to wear headsets or discrete earpieces to maintain privacy, many users will choose to operate their handsets like a traditional portable radio. The X10DR Elite Plus provides double the receive audio volume of previous models to ensure that no matter the background noise level, messages will always get through loud and clear.

Extra Long Battery Life

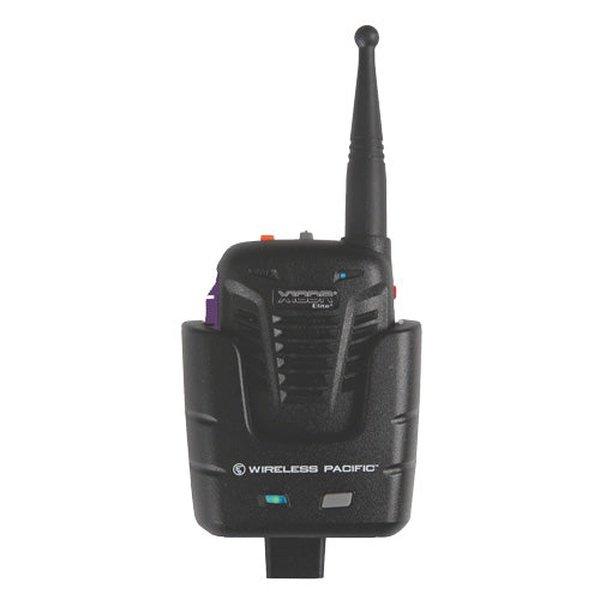

The X10DR’s 1450mAH internal battery means you will typically achieve well in excess of 24 hours of operation between recharges. Docking the microphone into its cradle allows 100% recharge from completely flat in less than 4 hours or for a quick top-up during a rest break. Where charging in the vehicle is not desired, a single and six-way desktop charger is also available.

External Battery Connectivity

For those first responders where a handset may need to be in constant use without being returned to the vehicle’s charging gateway, a secondary external battery to be plugged into the handset’s bottom headset socket via a curly cord adaptor. Once connected, the LED status light will blink every 10 seconds to indicate charging is taking place. The handset can be used as normal with* or without the external battery attached. External batteries may be left connected, removed when charged, or swapped over with a fresh battery as needed.

Find Me™ Locator

In the event of a lost secure microphone or to find a user who may have been rendered unconscious, the new Find Me feature can be triggered by momentarily double-pressing the front panel button on the gateway charging cradle in order to sound an alarm tone from the paired secure microphone to aid in quickly locating the user or device.

Installation and Audio Accessories

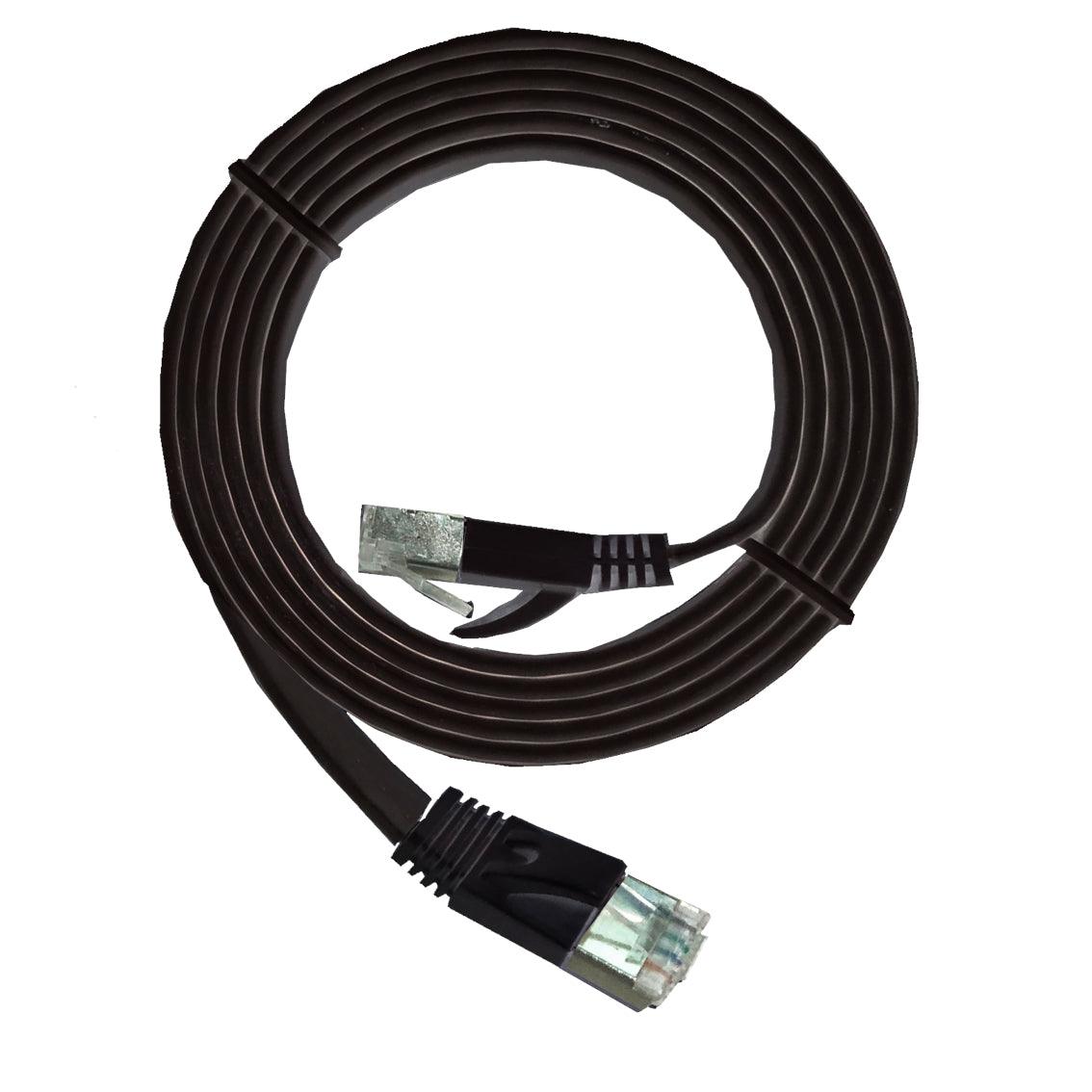

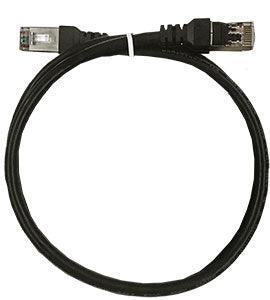

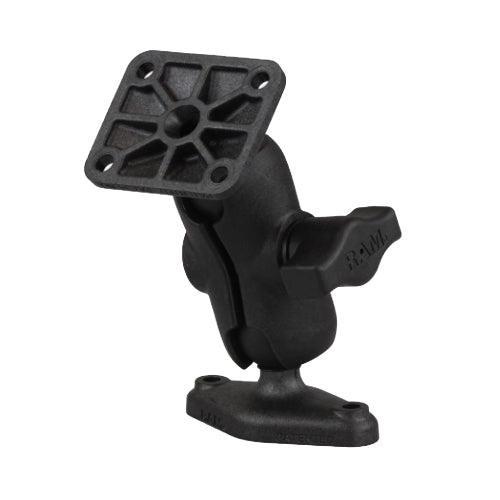

We carry a comprehensive range of Wireless Pacific of installation and premium audio accessories designed or optimised exclusively for use with all X10DR systems. This incudes XEC-4.6 extension cables, XMDM2 mobile mounting arms , WPiTRQ-x10 Lapel Ear Mics, motorcycle, heavy duty  and lightweight headsets to name a few. to view a complete range of available refer X10DR Accessories Brochure.

Elite Plus Features:


Refer to XCA Master Charts for connection details to your mobile radio

 View User Manual
