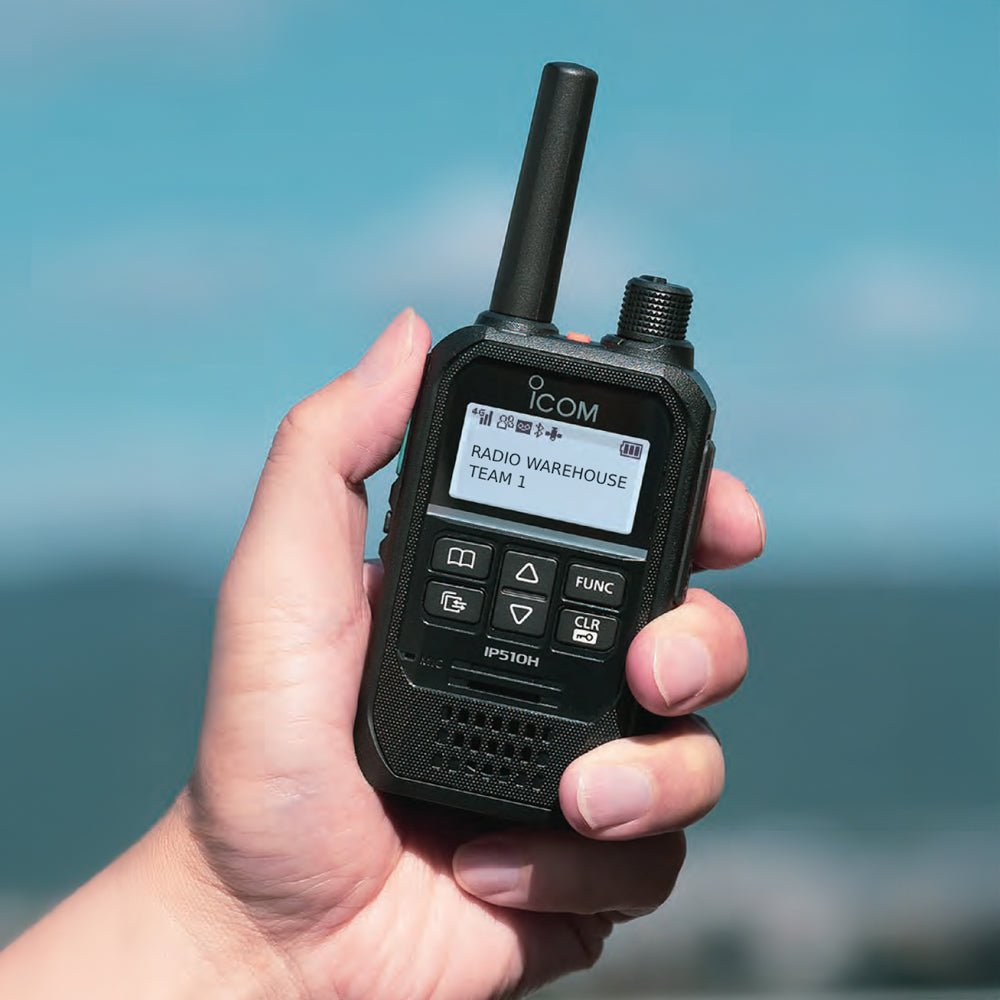

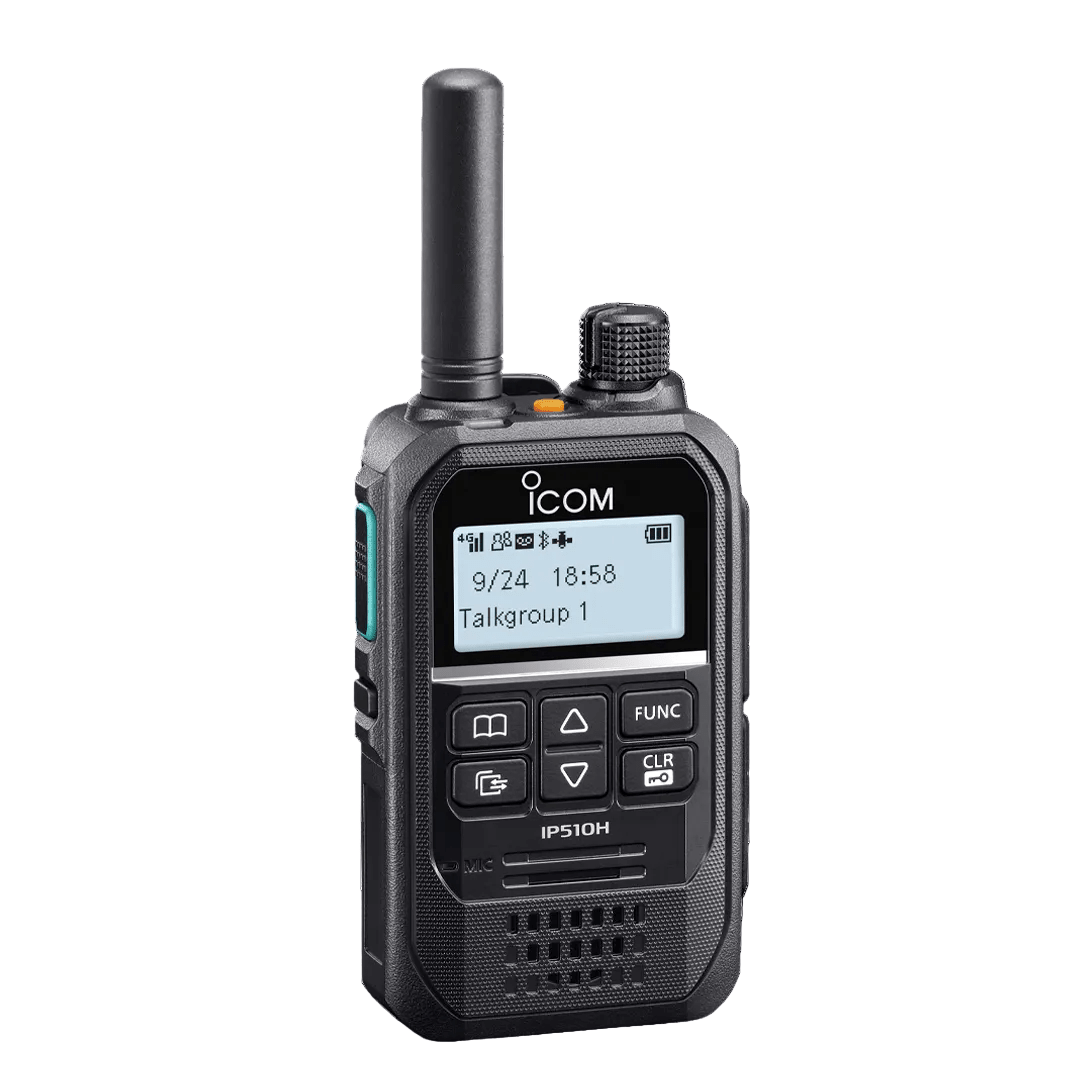

Icom IP510H 4G LTE & WiFi Hybrid Radio

We are proud to introduce the Icom IP510H: a next-gen, hybrid 4G LTE/Wi-Fi radio, purpose-built for business-critical, Australian commercial and government operations.

The IP510H radio allows your team to stay connected wherever you have Telstra 4G coverage or wherever your enterprise or business WiFi coverage reaches. 📶 🛜

This Icom IP Networking radio platform effectively extends and merges your radio communication connectivity across your WiFi & Telstra 4G networks, making the IP510H ideal for a wide range of cross-functional teams, no matter where your team are located.

The IP510H Advantages:

• Enterprise Grade 4G LTE / Wi-Fi Radio Platform

• Personalised Group Channel Names (i.e "Your Team Name", "Department")
• Optional Individual Private Calls (i.e "Employee Name", "Site Manager")

• Emergency Features (Mandown, Short Messages, GPS)
• Surveillance / Covert Mode

• AES 256-Bit Encryption
• Bluetooth
• No UHF Range & UHF Frequency Limitations
• No ACMA Licences Required
• Interoperable with 3rd party systems via optional VE-PG4 ROIP Gateway
• Mission Critical PTToC Infrastructure (Telstra, AWS Australia)

Hybrid connectivity use case scenario:

You may be operating across a multistorey building where you have excellent Telstra 4G coverage above ground and outdoors, but stronger WiFi coverage in certain parts, such as between thick concrete areas, like an underground carpark or basement.

The IP510H will seamlessly connect to the strongest, or your chosen, Telstra 4G or WiFi network, ensuring continuous communication wherever your staff are located, inside or outside of buildings.

Our technical team can set the signal strength specifications to ensure the radio system performs exactly as your WiFi network strength requires. Our team can set this remotely, ensuring the IP510H is perfectly suited to your operating environment, now and in the future, as your networking environment evolves.

The Icom IP510H is ideal for team communication:

• Hybrid/remote & mobile work teams
• Hotels, resorts with valet car parking
• Multi-storey buildings with basements
• Warehouses with high-density shelving
• Mixed above / underground facilities (i.e mining projects)
• Cleaning, facilities management services
• University / multi-campus education
• Shopping malls
• Mobile patrol security teams
• Airport-based businesses
• Local, Federal & State Government


Built with Mission Critical PTToC Network Infrastructure - Located in Australia

Unlike some less reputable Push-To-Talk Over Cellular (PTToC) devices available, which use undisclosed servers located overseas, the Icom IP510H radio platform communicates via a dedicated APN on the Telstra 4G LTE network, offering blistering, seamless, encrypted, near real-time team communication backed by mission-critical AWS servers located in Australia. Your business & government communications remain protected & private, in accordance with Australian law.


Scalable / Interoperable / Backwards Compatible:

Need to connect the IP510H radios to your existing UHF radio system? The IP510H radio can connect seamlessly to 3rd party radio systems, including the ability to make telephone calls, and even activate remote alarms, when used with the Icom VE-PG4 ROIP Gateway. The, optional, Icom ROIP gateway ensures your investment in IP510H two-way radios is interoperable, offering backwards and forwards compatibility with legacy and future communication systems, without vendor lock-in. The connection options are literally endless.

Download: Icom Networking Solution Brochure

Technical Specifications

WLAN

• Frequency Bands: 2.4 GHz / 5 GHz
• Standards: IEEE 802.11 a/b/g/n/ac
• Security: WPA2 / WPA3 (Personal & Enterprise)
• Max Stored Networks: Up to 10 SSIDs

Cellular

• RF Output Power: 23 dBm (typical)

Battery & Power

• USB-C Input: 5V / 2A
• Approx. Charge Time: ~2 hours (standard battery)

Recording

• Storage Capacity: Up to 10 calls
• Total Recording Time: Approx. 4 minutes (loop overwrite)

Environmental

• Operating Temperature Range: -10°C to +60°C

Advanced Features

• Wi-Fi Coverage Extension (Dead Zone Elimination)
  Operates over wireless LAN when cellular coverage is unavailable, allowing communication in basements, underground car parks, tunnels, and shielded buildings.
• Seamless LTE ↔ Wi-Fi Roaming
  Automatically transitions between networks without user input, maintaining continuous communication when moving between coverage zones.
• Simultaneous TalkListen™ Technology
  Enables users to talk and receive audio at the same time, improving communication efficiency in fast-paced environments.
• Multiple User Communication Without Delay
  Additional users can join ongoing conversations without waiting, improving coordination in team-based operations.
• Priority Call Interrupt Function
  Allows urgent transmissions to override ongoing communication when critical messages need to be delivered immediately.
• Battery Hot-Swap via USB-C Power
  Maintain operation while replacing the battery when connected to external power, preventing downtime.
• Voice Log Recording & Playback
  Stores recent communications for playback, useful for confirming instructions or incident review.

Connectivity & Network Capabilities

• Dual Network Architecture
  Combines wide-area LTE coverage with local Wi-Fi infrastructure for maximum operational flexibility.
• Support for Enterprise Wi-Fi Security (WPA3-Enterprise)
  Suitable for corporate and secured network environments requiring advanced authentication protocols.
• Multiple Wi-Fi Network Profiles
  Store and switch between multiple SSIDs, ideal for sites with segmented or multi-building networks.
• Integrated GNSS Positioning
  Enables location tracking and positioning for fleet visibility and operational awareness.

Audio & Usability Enhancements

• Enhanced Audio Clarity in High-Noise Environments
  Designed to maintain intelligibility in industrial and high-activity settings.
• Programmable Keys for Custom Workflows
  Buttons can be configured for frequently used functions, improving operational efficiency.
• Call History & Playback Access
  Quickly review recent communications directly from the device interface.
• Vibration Alert Function
  Discreet notification for incoming calls in noise-sensitive or quiet environments.
