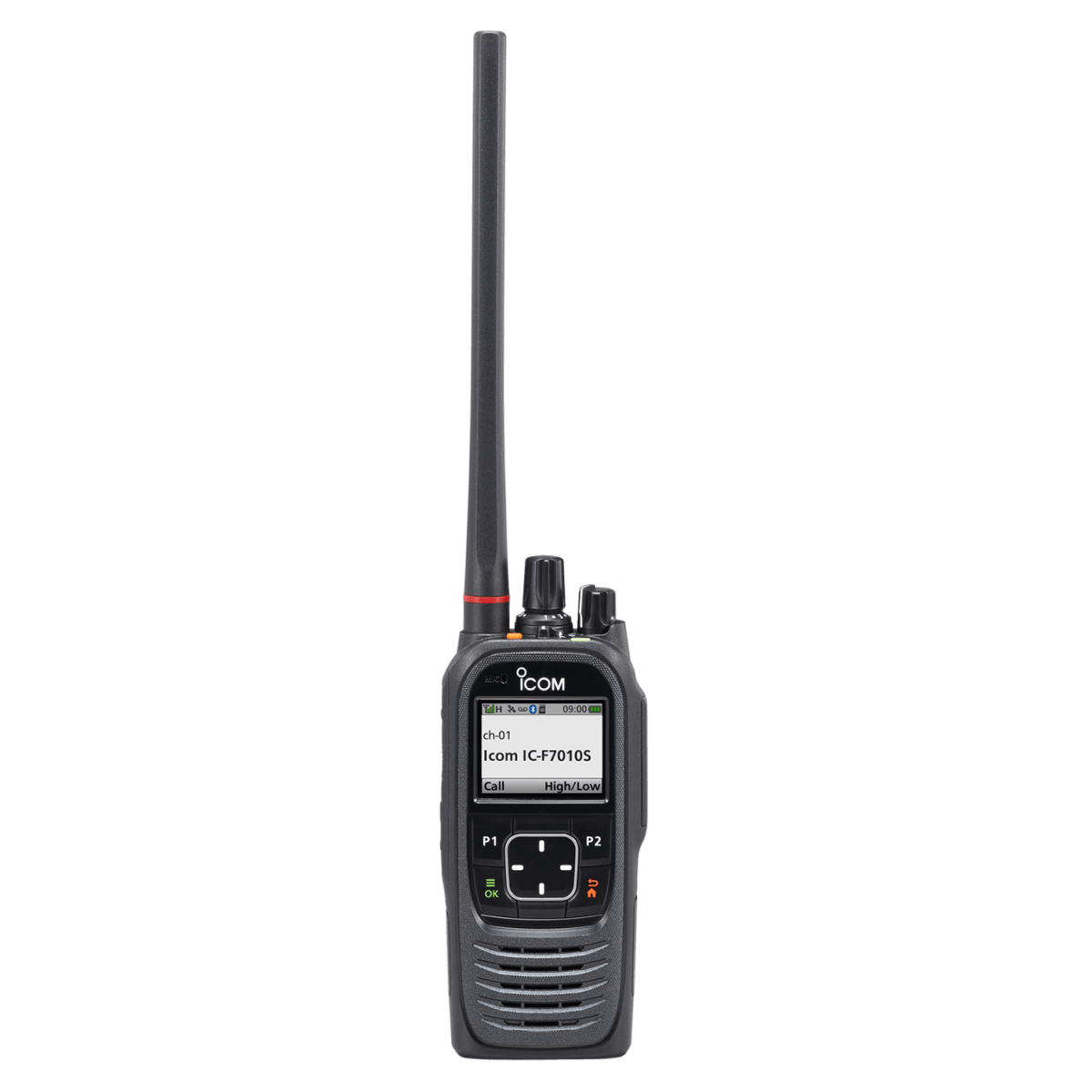

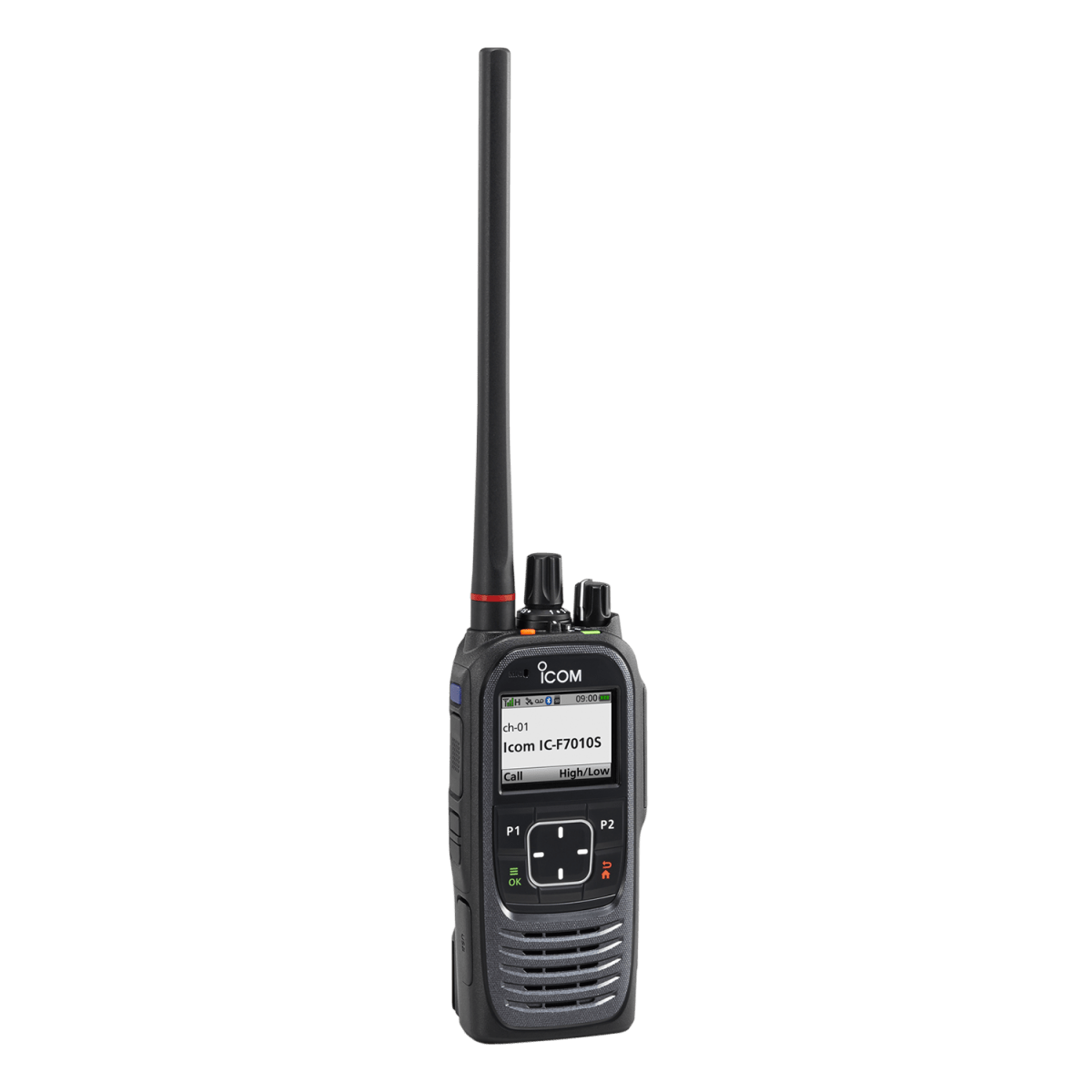

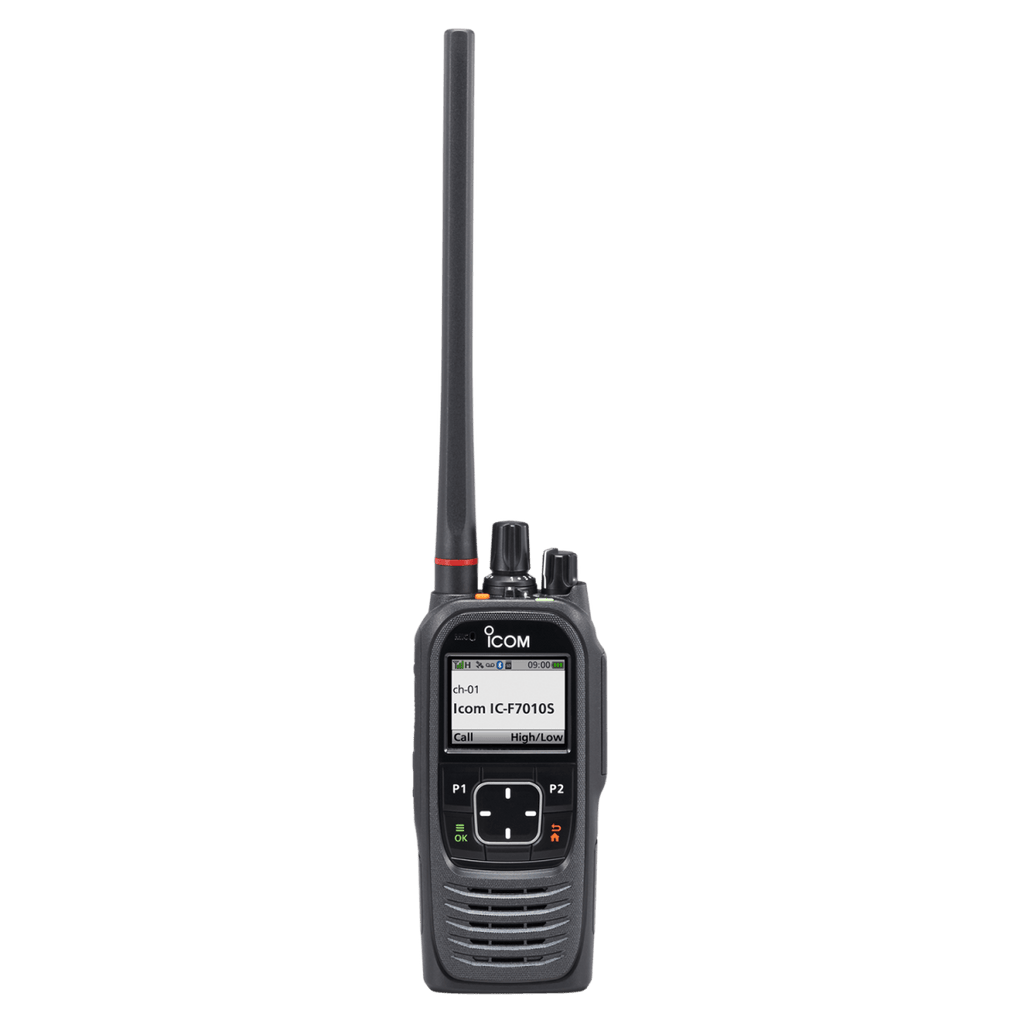

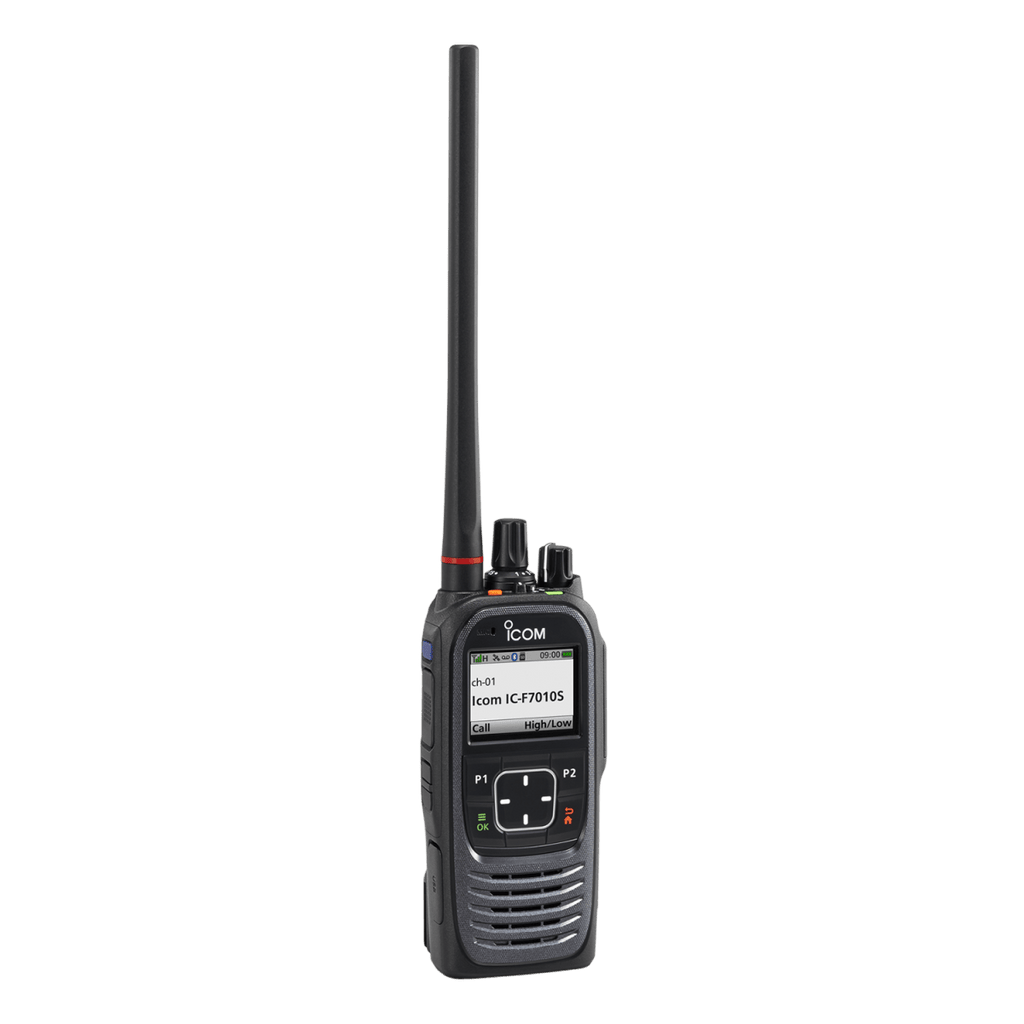

The Icom IC-F7020 (UHF) and IC-F7010 (VHF) are P25 digital handheld transceivers built for public safety, government, utilities, mining and transport professionals operating on mission-critical radio networks. DHS P25 CAP certified to the TIA-102 standard, both models are confirmed interoperable with other P25 radios regardless of brand, and can be upgraded to P25 Phase 1 and Phase 2 trunking with a license key as your network grows.

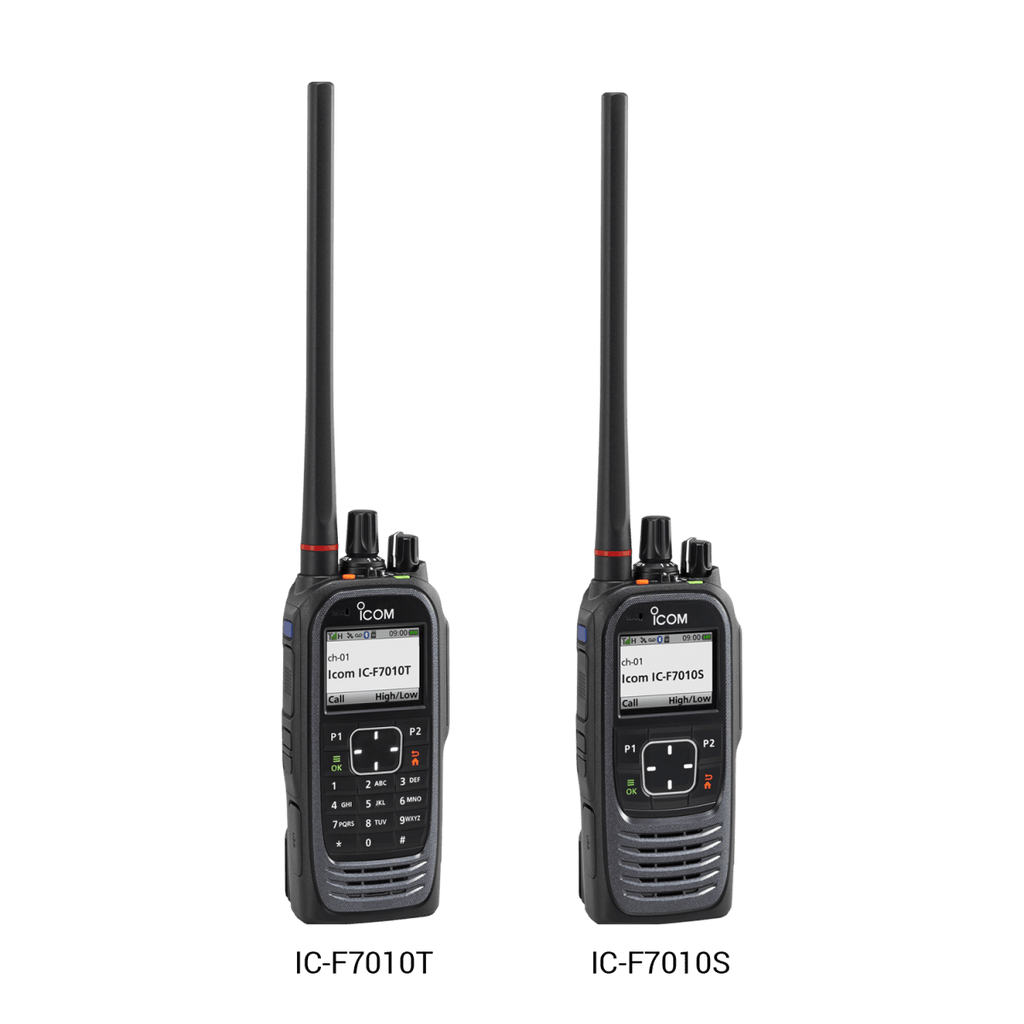

Both models are available in two keypad configurations: a T model (ten-key alphanumeric keypad) and an S model (simplified keypad). That gives four variants in total: IC-F7020T, IC-F7020S, IC-F7010T and IC-F7010S. Select your version using the options above.
Key Features and Benefits
- P25 CAP Certified Interoperability: DHS P25 CAP certification to TIA-102 confirms interoperability with other certified P25 radios from Motorola, Kenwood, Harris and other manufacturers - essential for multi-agency and government deployments across Australia.
- Upgradeable to P25 Phase 1 and Phase 2 Trunking: Starts as a P25 Phase 1 conventional radio. Optional license keys (ISL-P25TR and ISL-P25P2) upgrade it to Phase 1 and Phase 2 trunking, protecting your investment as your network evolves.
- IP68 Waterproof and Dustproof: Rated IP68 for complete dust protection and waterproof submersion to one metre depth for one hour. Also tested to MIL-STD-810G for shock, vibration, temperature extremes, rain, humidity and salt fog.
-
1300 mW Loud, Clear Audio: Icom's custom high-power capacity speaker delivers 1300 mW of internal audio output for clear, intelligible communications in high-noise environments.
-
Built-in Emergency and Safety Functions: Emergency button, Man Down detection, Lone Worker alert, and Motion and Stationary detection provide personnel safety monitoring and critical alerts in the field.
- Built-in GPS, Bluetooth and Voice Recording: GPS receiver and Bluetooth come standard. Voice recording captures transmitted and received audio - including User ID, GPS position and frequency data - to a user-supplied microSD card.
-
Optional AES/DES Encryption: Add AES/DES encryption with the optional encryption unit (UT-134 non-FIPS or UT-125 FIPS) and ISL-P25AES license key. Includes Over-the-Air Rekeying (OTAR) support and analogue inversion voice scrambler (16 codes).
-

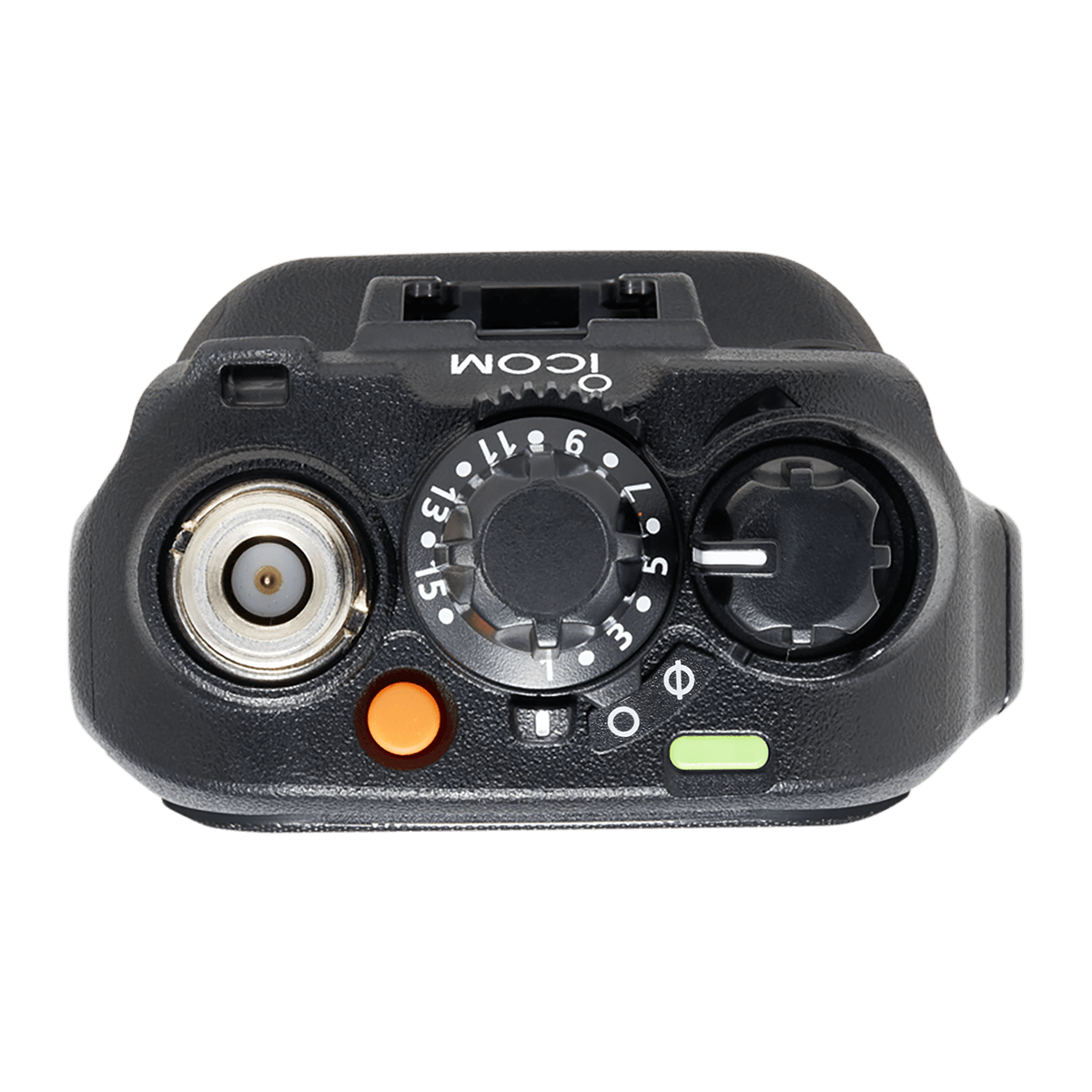

Colour LCD with Day and Night Modes: High-resolution colour display with adjustable modes for outdoor and low-light conditions. 16-position rotary channel selector and Quick A/B concentric switch for rapid zone and encryption switching.
- 1024 Channels and 128 Zones: Large channel and zone capacity for complex talkgroup structures and wide-area deployments.
- Analogue and Mixed Mode: Supports analogue FM and analogue/digital mixed mode for phased migration from legacy analogue fleets to P25 digital.
- Compact and Slim: At 38.2 mm depth and 355 g complete, the IC-F7010 and IC-F7020 fit comfortably in a holster or vest pocket. The flat sheet keypad provides a large button surface and protects the radio from dust intrusion.
IC-F7020 vs IC-F7010 - Which Model Do I Need?
Both models share the same features and physical design. The only difference is frequency band. Your choice must match the licensed frequencies used by your P25 network - if you are unsure, contact us before ordering.
| IC-F7020 (UHF) | 380–470 MHz. The most commonly deployed band for P25 in commercial, utilities and industrial applications in Australia. The IC-F7020T and IC-F7020S are our most popular variants. |
|---|---|
| IC-F7010 (VHF) | 136–174 MHz. The standard VHF P25 band used by many Australian emergency services, government agencies and some rural operations. Select the IC-F7010T or IC-F7010S for VHF networks. |
| T model (ten-key) | IC-F7020T / IC-F7010T. Full alphanumeric keypad for manual dialling, status messaging and data entry. |
| S model (simple key) | IC-F7020S / IC-F7010S. Simplified flat sheet keypad with programmable buttons - preferred where minimal controls suit the operating environment. |
Icom IC-F7020 / IC-F7010 Specifications
| Standard | P25 Phase 1 conventional; Phase 1 and Phase 2 trunking with optional license keys |
|---|---|
| Certification | DHS P25 CAP certified (TIA-102) |
| Frequency - UHF (IC-F7020) | 380–470 MHz |
| Frequency - VHF (IC-F7010) | 136–174 MHz |
| TX Output Power | 5 W / 2 W / 1 W (Hi / L2 / L1) |
| Channels / Zones | 1,024 channels / 128 zones |
| Operating Modes | P25 Phase 1 conventional, P25 trunking (license key required), analogue, analogue/digital mixed |
| Receiver Sensitivity - UHF | 0.23 µV typical (analogue 12 dB SINAD and digital 5% BER) |
| Receiver Sensitivity - VHF | 0.22 µV typical (analogue 12 dB SINAD and digital 5% BER) |
| Audio Output - Internal Speaker | 1,300 mW typical (at 5% distortion, 8 Ω load) |
| Audio Output - External Speaker | 1,000 mW typical (at 5% distortion, 8 Ω load) |
| Vocoder | AMBE+2™ enhanced dual-rate |
| Display | High-resolution colour LCD, day and night modes |
| GPS | Built-in receiver with position screen |
| Bluetooth | Built-in (wireless audio, headset and programming) |
| Voice Recording | To user-supplied microSD card (up to 32 GB, up to 500 hours) |
| Encryption | Optional AES/DES unit (UT-134 non-FIPS or UT-125 FIPS) + ISL-P25AES license key |
| Battery | BP-284 Li-Ion, 3,210 mAh typical (IP68 rated) |
| Battery Life - VHF (IC-F7010) | Approx. 14 hours (5/5/90 duty cycle) |
| Accessory Connector | 14-pin |
| USB | USB micro-B (data transfer and microSD card access) |
| Dust and Water Rating | IP68 - dust-tight, waterproof to 1 m for 1 hour |
| Durability | MIL-STD-810G (shock, vibration, temperature, rain, humidity, salt fog, solar radiation, blowing dust) |
| Operating Temperature | -30 °C to +60 °C |
| Dimensions (W x H x D) | 53.6 × 123.5 × 38.2 mm (with BP-284) |
| Weight | 355 g (with BP-284, belt clip and antenna) |
Battery life for UHF (IC-F7020) is not published in the product specification. Contact us for further detail.
Need the full specification sheet? Download the Icom IC-F7010 / IC-F7020 Series Brochure.
What's in the Box
- Icom IC-F7020 or IC-F7010 P25 digital handheld transceiver (version selected above)
- Li-Ion battery pack BP-284 (3,210 mAh typical, IP68 rated)
- Belt clip MB-133
Please note: A battery charger and antenna are not included and must be purchased separately. Contact us to confirm the correct charger and antenna for your model and frequency band.
Who the IC-F7020 and IC-F7010 Are Designed For
The IC-F7020 and IC-F7010 are mission-critical P25 radios, not general-purpose business radios. They are suited to: police, fire and ambulance services; state emergency services; utilities and energy infrastructure; mining and resources; transport operations; and government agencies requiring certified, interoperable P25 communications on licensed land mobile frequencies.
Not sure which standard applies to your network? Contact us and we can confirm.
Programming and Licensing in Australia
The IC-F7020 and IC-F7010 operate on licensed land mobile frequencies and require an ACMA apparatus licence. The radio must be programmed to match your P25 network parameters, talkgroup structure and trunking controller settings. Our team can assist - see our Programming Explained page or ACMA Private Channel Provision service.
Icom IC-F7020 / IC-F7010 FAQs
What is the difference between the Icom IC-F7010 and IC-F7020?
The IC-F7010 is a VHF P25 radio covering 136–174 MHz. The IC-F7020 is a UHF P25 radio covering 380–470 MHz. All features, certifications, dimensions and specifications are otherwise identical. Your choice must match the licensed frequency band used by your P25 network. If you are unsure, contact us before ordering.
What is the difference between P25 Phase 1 and Phase 2?
P25 Phase 1 uses FDMA technology with 12.5 kHz channel spacing and is the most widely deployed P25 standard in Australia. P25 Phase 2 uses TDMA on the same 12.5 kHz channel, effectively doubling call capacity. The IC-F7020 and IC-F7010 support Phase 1 conventional as standard and can be upgraded to Phase 1 or Phase 2 trunking with the appropriate license keys.
Is the IC-F7020 interoperable with Motorola APX and other P25 radios?
Yes, when operating on the same P25 network. The IC-F7020 and IC-F7010 are DHS P25 CAP certified to TIA-102, which confirms multi-vendor interoperability with other certified P25 radios from Motorola, Kenwood, Harris and other manufacturers. Check with your network administrator to confirm your infrastructure is CAP-compliant.
Can the IC-F7020 and IC-F7010 communicate with my existing analogue radios?
Yes. Both models support analogue FM mode and analogue/digital mixed mode, allowing them to operate on the same licensed frequencies as existing analogue radios during a phased migration to P25 digital.
How waterproof is the IC-F7020 and IC-F7010?
Both models are rated IP68 - fully dust-tight and waterproof to one metre depth for one hour. The BP-284 battery is also separately rated IP68. The radios have been tested to MIL-STD-810G for shock, vibration, humidity, rain, salt fog, temperature shock, solar radiation and blowing dust. Read more about what IP ratings mean.
Contact Radio Warehouse to discuss your P25 network requirements, programming, license key upgrades and accessories for the Icom IC-F7020 and IC-F7010 Series.
