Description

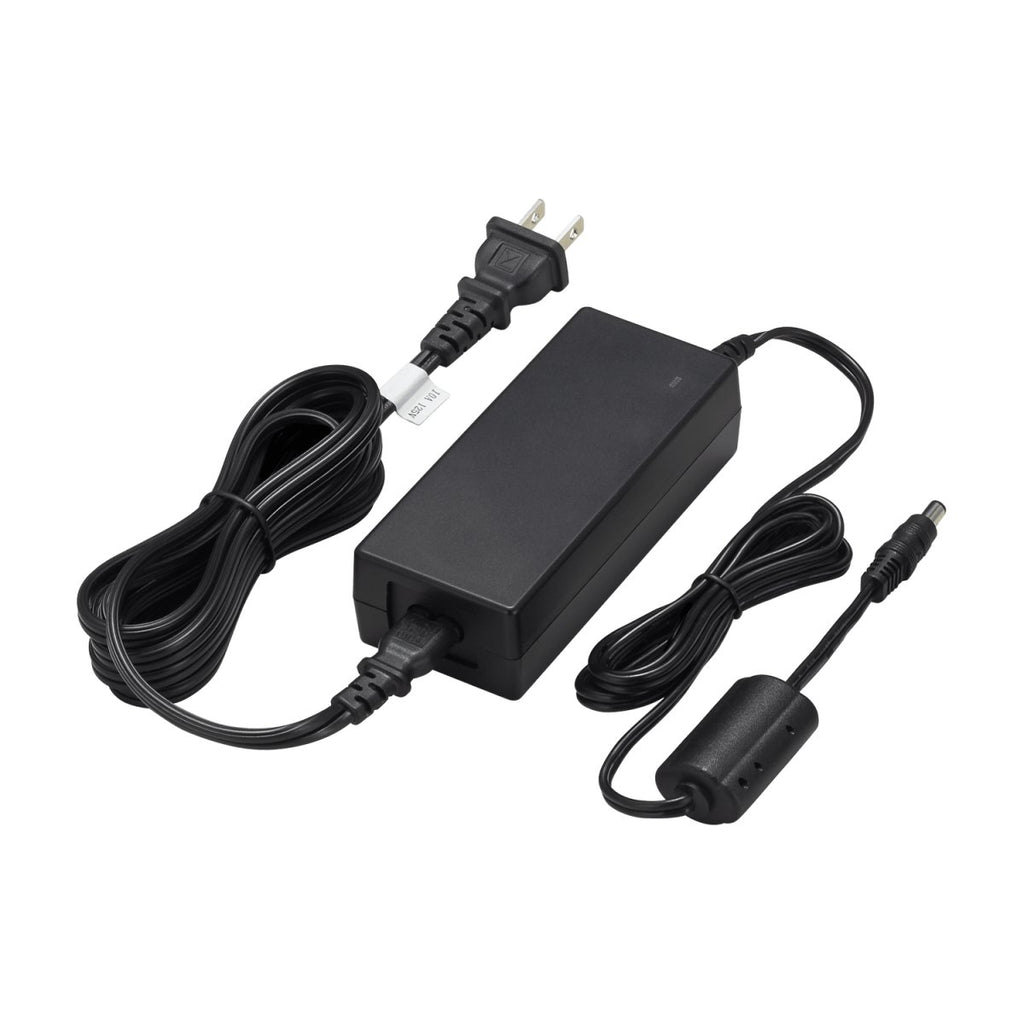

The Icom BC228 Power adaptor is compatible with the following connectable desktop chargers:
- BC-202IP3L Connectable Desktop Charger (Icom IP501H / IP503H / IP503H Lite)
- BC-257 Connectable Desktop Charger (Icom IP110H)
- BC-226 Connectable Desktop Charger (Icom F4400D / IC-F62D / IP740D)
The BC228 provides enough power for the following combinations
2-6 x BC-202IP3L Chargers
2-4 x BC-257 Chargers
2-6 x BC-226 Chargers.
| Input Voltage | 100 - 240 V AC |
|---|---|
| Output Voltage | 15 V DC |
| Output Current | 4 A |
| Connector Information | Φ5.5 mm (outer)/Φ2.1 mm (inner) / 9.5 mm Length |
| Cable Length |
DC Output: 1200 mm; 47.2 in AC Input: 1830 mm; 72.0 in |
